Rincian produk
Tempat asal: Cina
Nama merek: FUYANG
Sertifikasi: ce, RoHS
Nomor model: F-5036
Syarat Pembayaran & Pengiriman
Kuantitas min Order: 1 pcs
Harga: Dapat dinegosiasikan
Kemasan rincian: 1unit/kotak karton
Waktu pengiriman: 5-7 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 100 BUAH / HARI
Jenis mesin: |
Pembersih Ultrasonik Industri |
Komponen Inti: |
Motor, Sensor industri |
Proses Pembersihan: |
Pembersihan Air Dingin |
Bahan: |
baja tahan karat SUS304 |
Ukuran tangki: |
600*500*450mm |
Frekuensi: |
40KHz |
Industri yang berlaku: |
Bengkel Mesin, Penggunaan Rumah, Eceran |
Jenis Pembersihan: |
Perendaman / Rendam |
Jaminan: |
1 tahun |
Penggunaan: |
Degreasing |
Jenis mesin: |
Pembersih Ultrasonik Industri |
Komponen Inti: |
Motor, Sensor industri |
Proses Pembersihan: |
Pembersihan Air Dingin |
Bahan: |
baja tahan karat SUS304 |
Ukuran tangki: |
600*500*450mm |
Frekuensi: |
40KHz |
Industri yang berlaku: |
Bengkel Mesin, Penggunaan Rumah, Eceran |
Jenis Pembersihan: |
Perendaman / Rendam |
Jaminan: |
1 tahun |
Penggunaan: |
Degreasing |

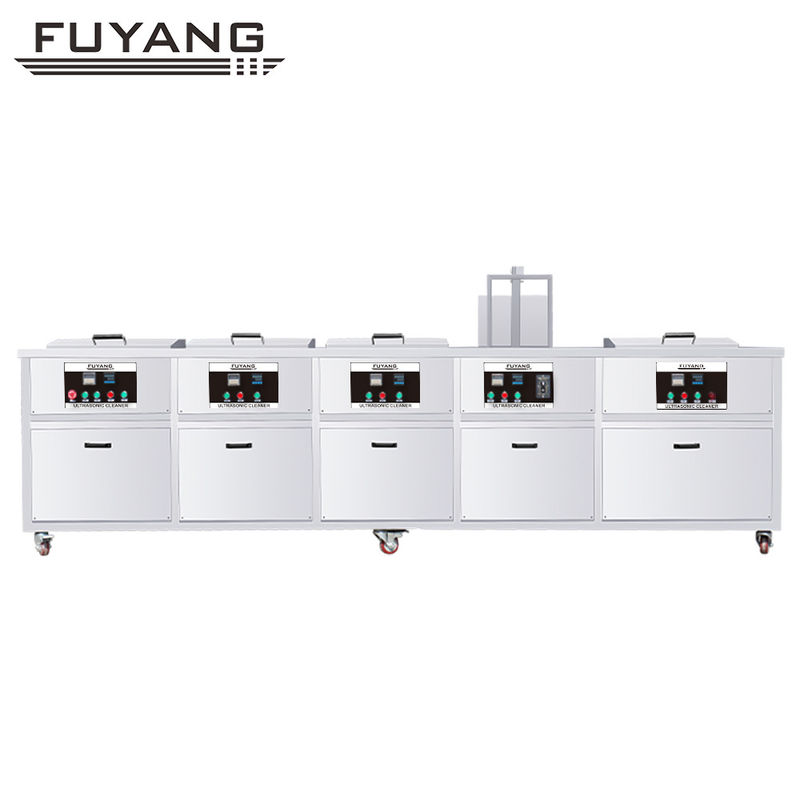

FUYANG 40KHz 135L Five Tanks Ultrasonic Cleaning Equipment EMF For Auto Parts
Specification
Model | F-5036 |
1st Tank Volume | 135L Ultrasonic Cleaning tank with filtration cycle system |
2nd Tank Volume | 135L Ultrasonic Rinsng tank |
3rd Tank Volume | 135L Bubble rinse tank |
4rd Tank Volume | 135L Spray tank |
5rd Tank Volume | 135L Blast drying tank |
Frenquency | 40KHz |
Drying System | 1 set |
Timer | 0~99 minutes adjustable |
Heater | Room temperature~99℃ adjustable |
Material | SUS 304 |
Power Supply | AC 380V ,3 phase |
Lead time | 18 working days |
Warranty | 1 year warranty period, technique support all time |
Certificates | CE, RoHS |
Advantage | Filter the dirty water; keep the water clear in tank; lower the frequency of changing water |
Ultrasonic Power Knowledge:
When an ultrasonic cleaner is running electrical power is consumed evenly but it is released in intervals to create the sound waves that shape the ultrasonic signal.
Some manufacturers report ultrasonic peak power, others report average power, and some report both. When comparing equipment you must compare based on the same criterion otherwise you’d be comparing apples with oranges.
While more power usually indicates faster and more effective cleaning, more power is not always better. Too much power can damage electronic parts, the surface finish on a soft metal (e.g. aluminum), and other delicate items.
Keep in mind that the larger the volume of solution, the more ultrasonic power will be needed for cleaning. Most cleaners run at an average power of 50 to 100 watts per gallon, so the larger the tank the more power you need.
Don’t attempt to increase the effective power of an ultrasonic cleaner by under-filling the tank. Ultrasonic cleaner generators that power transducers are tuned to a particular fill level. Operating the unit with less fluid can damage the generator and will result in less than optimized cleaning.
Q1.How do I get the best ultrasonic cleaning?
There are many considerations important to ultrasonic cleaning. Optimizing these variables will produce the best cleaning. The most important decisions to be made are choosing the proper cleaning solution, cleaning at the right temperature for the correct amount of time, and choosing the right size and type of ultrasonic cleaner.
Q2.Can ultrasonic cleaning damage my parts?
With certain cautions, ultrasonic cleaning is considered safe for most parts. While the effects of thousands of implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level. The most important cautionary consideration is the choice of cleaning solution. Potentially adverse effects of the detergent on the material being cleaned will be enhanced by the ultrasonic.
Q3.Why is a special solution required for cleaning?
Soils adhere to the parts... if they didn't, the soil would just fall off the parts! The purpose of the solution is to break the bond between parts and their soils. Water alone has no cleaning properties. The primary purpose of the ultrasonic activity (cavitation) is to assist the solution in doing its job. An ultrasonic cleaning solution contains various ingredients designed to optimize the ultrasonic cleaning process. For example, increased cavitation levels result from reduced fluid surface tension. An ultrasonic solution will contain a good wetting agent or surfactant.
Q4.What cleaning solution should I use?
Modern ultrasonic cleaning solutions are compounded from a variety of detergents, wetting agents and other reactive components. A large variety of excellent formulations are available, designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to preclude undesirable reactivity with the part being cleaned.
